Nitinol Braid

Medical Murray’s nitinol braid prototypes are the first step in evaluating the specific needs for your next catheter or implantable device.

Note: Half-Load 8 wire ends as well as Diamond 16 and 48 wire ends braid pattern variants are temporarily OUT OF STOCK.


$155.00$215.00 (excl. tax)

Additional Information

If you are not seeing exactly what you need in our store, please contact Medical Murray to inquire about custom braid or stent configurations to meet your needs.

Disclaimer:  This product is not intended for human use, is intended for R&D purposes only, and has not been approved by any regulatory agency, including the US Food and Drug Administration. Medical Murray online store products are considered custom made and are not returnable or refundable unless they are defective/do not meet the specifications they were sold at. Please see our Terms & Conditions and Refund & Return Policy for more information.




Product Details

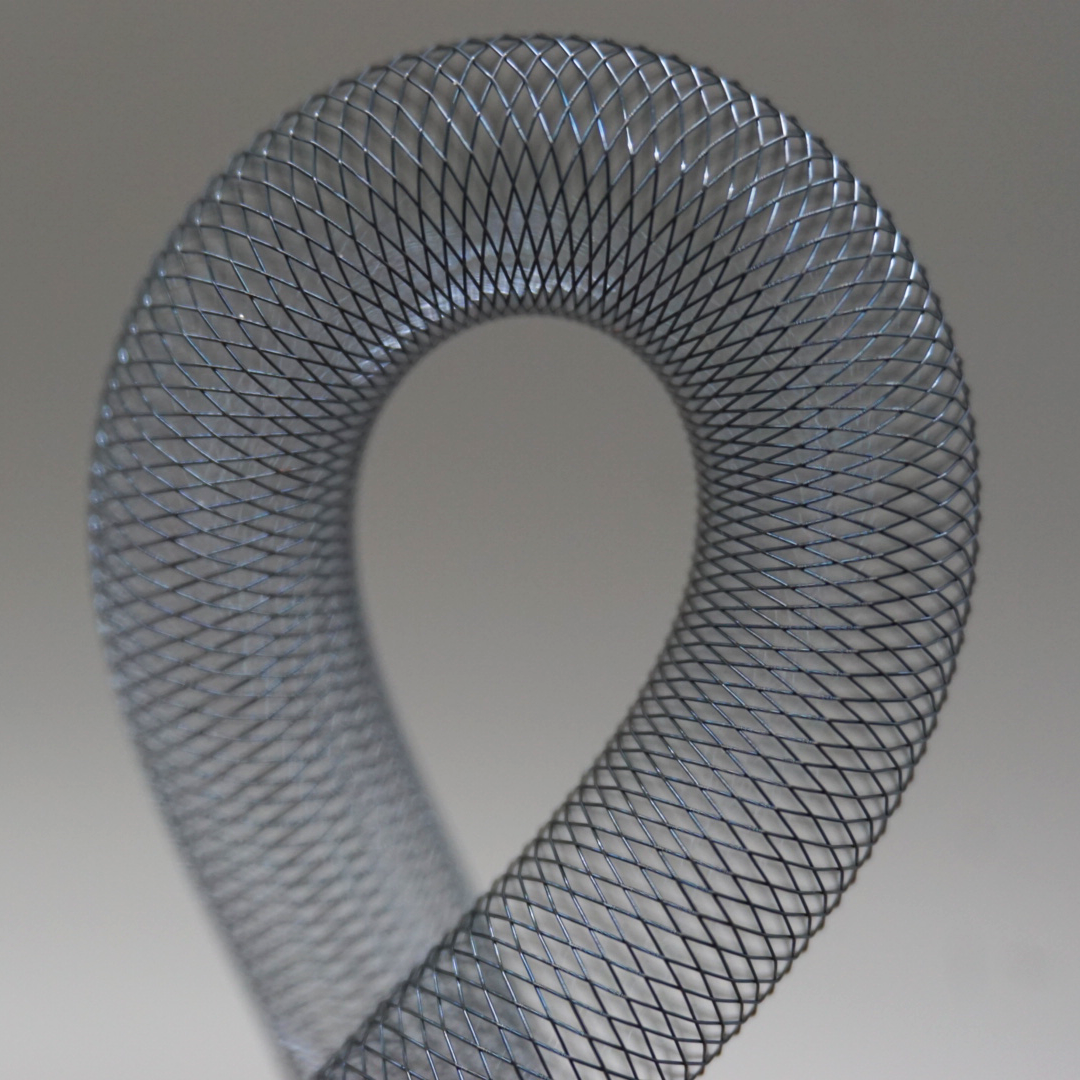

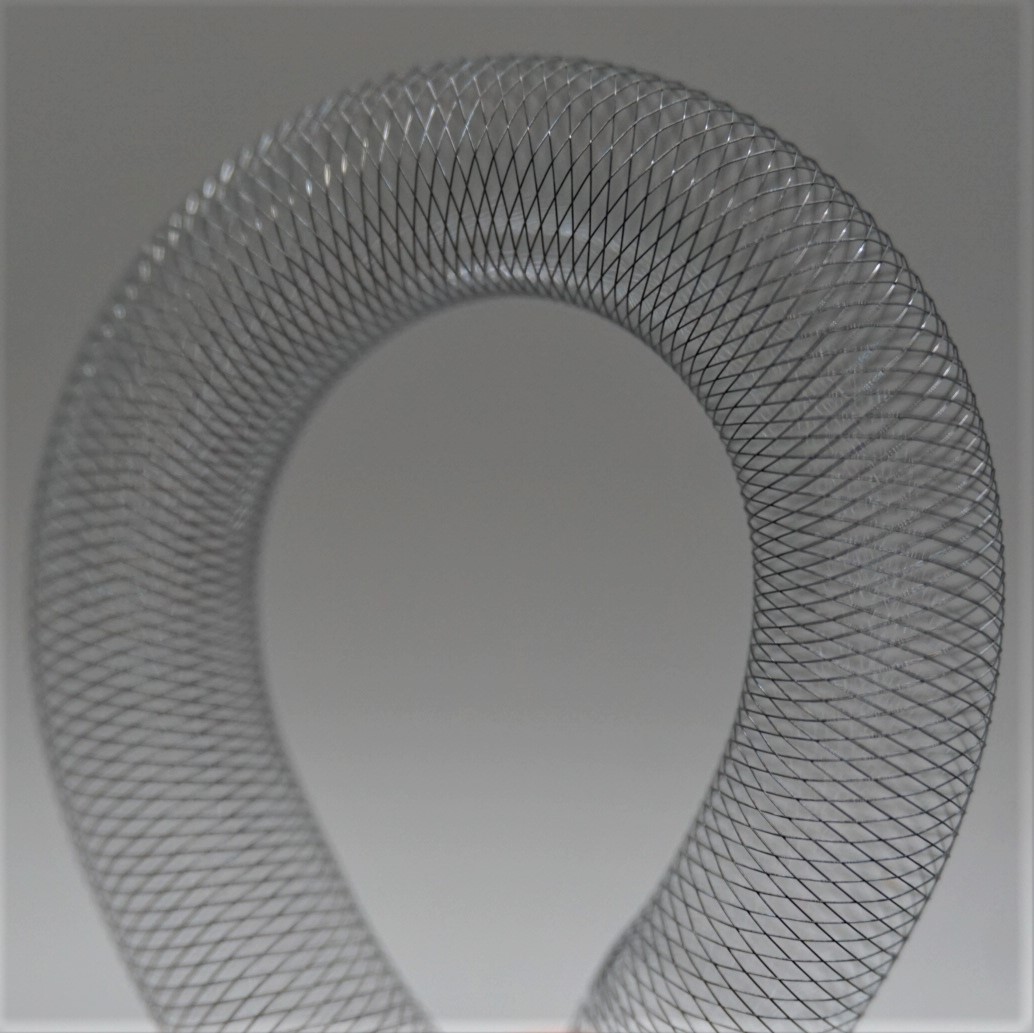

Material Composition:  0.004″ (100 µm)  or 0.0025″ (~65 µm) Wire Diameter

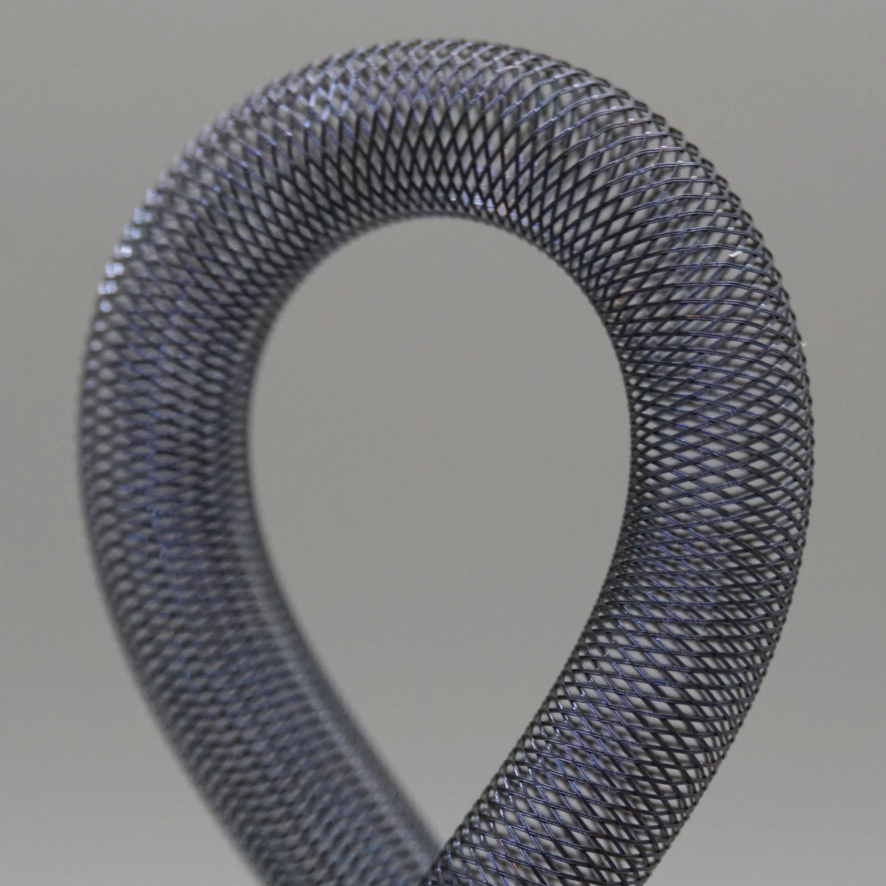

Braid Pattern:   Half-Load (1u1o1) 8  or 24 Wire Ends & Diamond (2u2o2) 16 or 48 Wire Ends

Note: Half-Load 8 Wire Ends and Diamond 16 and 48 wire ends are both temporarily OUT OF STOCK

Sample Length: 4″ (~100mm), 6″ (~150mm), or 8″ (~200mm). If you need a longer or shorter sample length, please contact us to discuss the exact requirements for your device.

Can't Find What You're Looking for?

Request a quote below for a custom braid configuration that would fit your device's specific needs.
